HSU276A - Silicon Schottky Barrier Diode for Mixer

Product Overview

Hitachi Semiconductor

Part number	HSU276A
Manufacturer	Hitachi Semiconductor
File Size	21.42 KB
Description	Silicon Schottky Barrier Diode for Mixer
Datasheet	HSU276A Datasheet

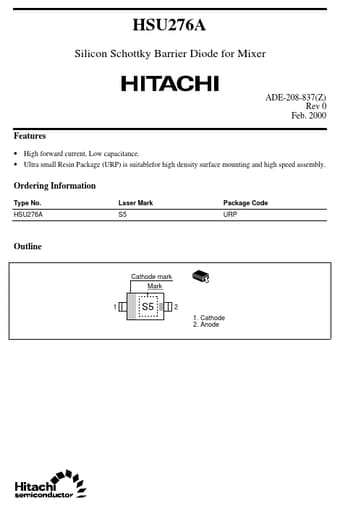

Additional preview pages of the HSU276A datasheet.

High forward current, Low capacitance.
Ultra small Resin Package (URP) is suitablefor high density surface mounting and high speed assembly. Ordering Information Type No. HSU276A Laser Mark S5 Package Code URP Outline Cathode mark Mark 1 S5 2 1. Cathode 2. Anode HSU276A Absolute Maximum Ratings (Ta = 25°C) Item Repetitive peak reverse voltage Reverse voltage Average rectified current Junction temperature Storage temperature Symbol VRRM VR IO Tj Tstg Value 5 3 30 125 -55.
