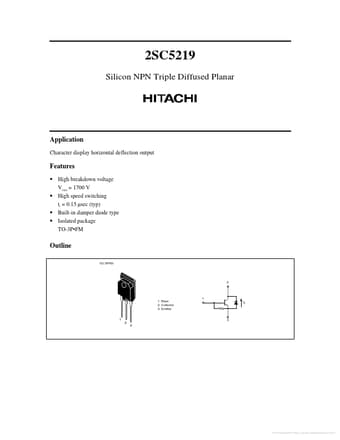

Part number:
2SC5219
Manufacturer:
Hitachi
File Size:
52.28 KB
Description:
Silicon npn triple diffused planar transistor.
* High breakdown voltage VCES = 1700 V
* High speed switching tf = 0.15 µsec (typ)
* Built-in damper diode type
* Isolated package TO-3P
* FM Outline TO-3PFM 2 1. Base 2. Collector 3. Emitter 1 ID 1 2 3 3 Free Datasheet http://www.datasheet4u.com/ 2SC5
2SC5219
Hitachi
52.28 KB
Silicon npn triple diffused planar transistor.
