2SC5461

Silicon NPN Transistor

2SC5461 Features

* High breakdown voltage VCBO = 1500 V

* High speed switching tf = 0.15 µsec(typ.) at fH=64kHz

* Isolated package TO

* 3PFM Outline TO

* 3PFM ADE-208-630 (Z) 1st. Edition Oct. 1, 1998 1 2 3 1. Base 2. Collector 3. Emitter 2SC5461 Absolute Maximum Ratings (Ta

2SC5461 Datasheet (42.24 KB)

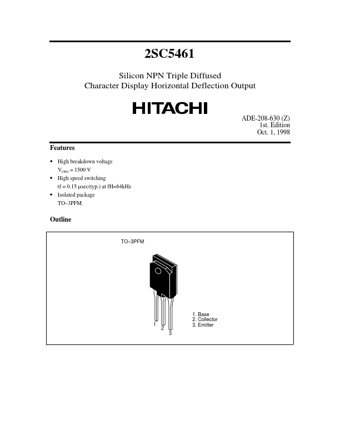

Preview of 2SC5461 PDF

Datasheet Details

Part number:

2SC5461

Manufacturer:

Hitachi

File Size:

42.24 KB

Description:

Silicon npn transistor.
