2SC5404 NPN TRANSISTOR

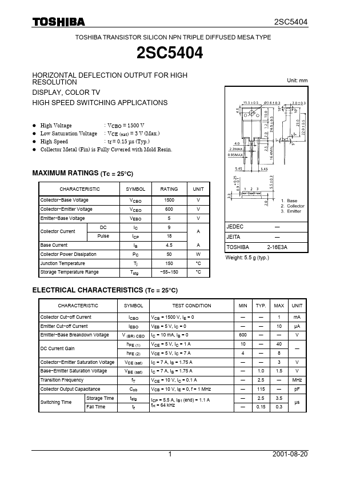

2SC5404 TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SC5404 HORIZONTAL DEFLECTION OUTPUT FOR HIGH RESOLUTION DISPLAY, COLOR TV HIGH SPEED SWITCHING APPLICATIONS Unit: mm l High Voltage : VCBO = 1500 V l Low Saturation Voltage : VCE (sat) = 3 V (Max.) l High Speed : tf = 0.15 µs (Typ.) l Collector Metal (Fin) is Fully Covered with Mold Resin. MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector Base Voltage Collector Emitter Voltage Emitter Base V.
