Part number:
2SC5405
Manufacturer:
Panasonic Semiconductor
File Size:
37.29 KB
Description:
Npn transistor.

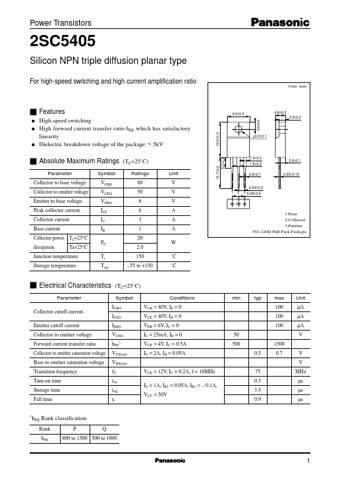

* q q 9.9±0.3 3.0±0.5 4.6±0.2 2.9±0.2 q High-speed switching High forward current transfer ratio hFE which has satisfactory linearity Dielectric breakdown voltage of the package: > 5kV (TC=25˚C) Ratings 80 50 6 6 3 1 20 2.0 150
* 55 to +150 Unit V V V A A A W ˚C ˚C 15.0±0.5 φ3.2±0.1 13.7
2SC5405
Panasonic Semiconductor
37.29 KB
Npn transistor.
