2SC5411, NPN TRANSISTOR

2SC5411 TOSHIBA TRANSISTOR SILICON NPN TRIPLE DIFFUSED MESA TYPE 2SC5411 HORIZONTAL DEFLECTION OUTPUT FOR HIGH RESOLUTION DISPLAY, COLOR TV HIGH SPEE.

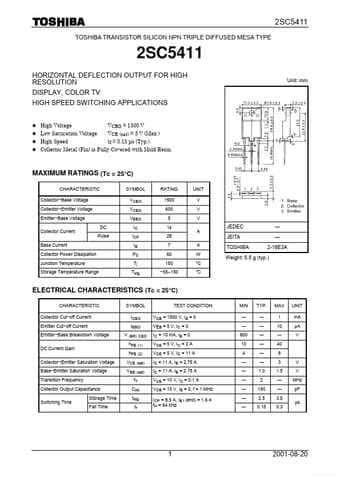

datasheet Preview Page 1 from Datasheet4u.com

2SC5411_ToshibaSemiconductor.pdf

2SC5411 Datasheet Preview — Preview of 2SC5411 PDF

Datasheet Details

Part number:

2SC5411

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

247.44 KB

Description:

NPN TRANSISTOR

Applications

* l High Voltage l Low Saturation Voltage l High Speed : VCBO = 1500 V : VCE (sat) = 3 V (Max. ) : tf = 0.15 µs (Typ. ) Unit: mm l Collector Metal (Fin) is Fully Covered with Mold Resin. MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector
* Base Voltage Collector
* Emitter Voltage Emitter
