2SC5414

NPN TRANSISTOR

Sanyo Semicon Device

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	2SC5414AF-AA	TRANS NPN 12V 0.1A 3NP	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (47.23 KB)

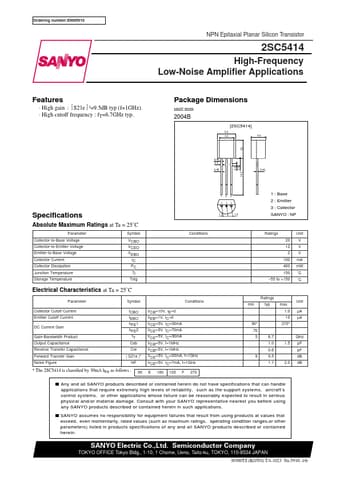

2SC5414 Datasheet Preview — Preview of 2SC5414 Datasheet

Datasheet Details

Part number:

2SC5414

Manufacturer:

Sanyo Semicon Device

File Size:

47.23 KB

Description:

Npn transistor.
Ordering number:ENN5910 NPN Epitaxial Planar Silicon Transistor 2SC5414 High-Frequency Low-Noise A.
mplifier Applications Features * High gain : S21e =9.5dB typ (f=1GHz). * High cutoff frequency : f.

✔ 2SC5414 Features

High gain : S21e =9.5dB typ (f=1GHz).
High cutoff frequency : fT=6.7GHz typ. 2 Package Dimensions unit:mm 2004B [2SC5414] 5.0 4.0 4.0 0.45 0.5 0.6 2.0 5.0 0.45

✔ 2SC5414 Application

Features
High gain : S21e =9.5dB typ (f=1GHz).
High cutoff frequency : fT=6.7GHz typ. 2 Package Dimen
