* High speed (tf=100ns typ).
* High breakdown voltage (VCBO=1500V).
* High reliability (Adoption of HVP process).

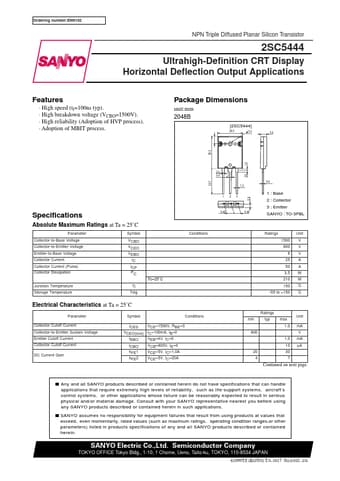

* Adoption of MBIT process. Package Dimensions unit:mm 2048B [2SC5444] 20.0 3.3 5.0 26.0 2.0 3.4 2.0 1.0 20.7 0.6 1.2 Specifications Absolute Maximum Ratings at T
2SC5444
Sanyo Semicon Device
42.33 KB
Npn transistor.
Ordering number:EN6102
NPN Triple Diffused Planar Silicon Transistor
2SC5444
Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicati.
