2SC5443

NPN Triple Diffused Planar Silicon Transistor

2SC5443 Features

* High speed (tf=100ns typ).

* High breakdown voltage (VCBO=1500V).

* High reliability (Adoption of HVP process).

* Adoption of MBIT process. Package Dimensions unit:mm 2048B [2SC5443] 20.0 3.3 5.0 2.0 1.0 20.7 26.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Paramete

2SC5443 Datasheet (38.53 KB)

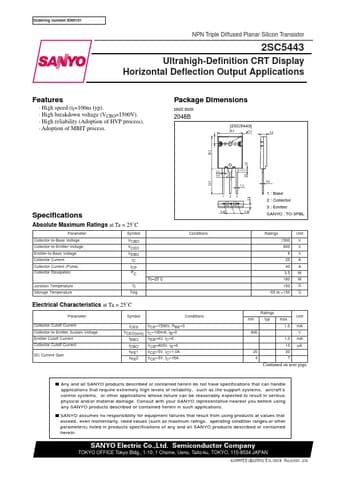

Preview of 2SC5443 PDF

Datasheet Details

Part number:

2SC5443

Manufacturer:

Sanyo

File Size:

38.53 KB

Description:

Npn triple diffused planar silicon transistor.
Ordering number:EN6101 NPN Triple Diffused Planar Silicon Transistor 2SC5443 Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicatio.
