2SC5226A Datasheet, Transistor, Sanyo

2SC5226A Features

• Transistor
• NPN Epitaxial Planar Silicon Transistor VHF to UHF Wide-Band Low-Noise Amplifier Applications Low-noise : NF=1.0dB typ (f=1GHz) High gain : ⏐S21e⏐2=12dB

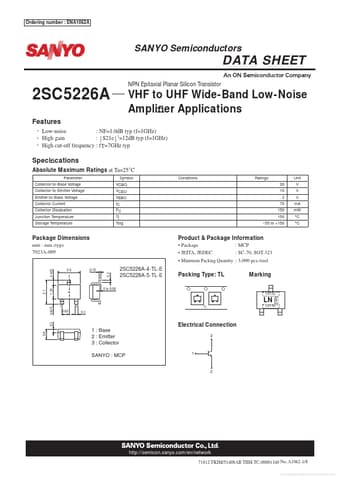

PDF File Details

Part number:

2SC5226A

Manufacturer:

Sanyo

File Size:

480.00kb

Download:

📄 Datasheet

Description:

Npn epitaxial planar silicon transistor.

2SC5226A Application

• Applications Low-noise : NF=1.0dB typ (f=1GHz) High gain : ⏐S21e⏐2=12dB typ (f=1GHz) High cut-off frequency : fT=7GHz typ Specifications Absolute M
