2SC5225

NPN TRANSISTOR

2SC5225 Features

* High voltage large current operation. VCEO = 80 V, IC = 300 mA

* High fT . fT = 1.4 GHz

* Small output capacitance. Cob = 3 pF 2SC5225 Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to

2SC5225 Datasheet (29.42 KB)

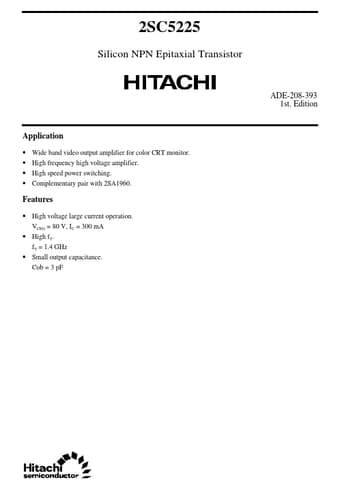

Preview of 2SC5225 PDF

Datasheet Details

Part number:

2SC5225

Manufacturer:

Hitachi Semiconductor

File Size:

29.42 KB

Description:

Npn transistor.
2SC5225 Silicon NPN Epitaxial Transistor ADE-208-393 1st. Edition Application

*

*

*

* Wide band video output amplifi.
