2SC5227A

NPN Epitaxial Planar Silicon Transistor

2SC5227A Features

* NPN Epitaxial Planar Silicon Transistor VHF to UHF Wide-Band Low-Noise Amplifier Applications Low-noise : NF=1.0dB typ (f=1GHz) High gain : ⏐S21e⏐2=12dB typ (f=1GHz) High cut-off frequency : fT=7GHz typ Specifications Absolute Maximum Ratings at Ta=25°C Parameter Coll

2SC5227A Datasheet (471.46 KB)

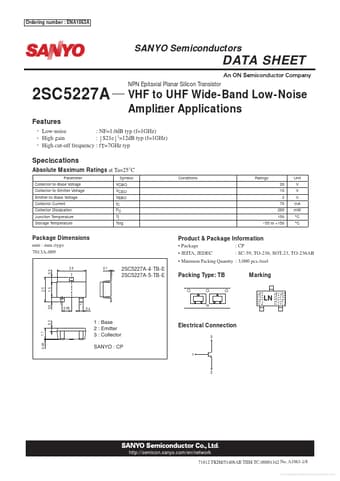

Preview of 2SC5227A PDF

Datasheet Details

Part number:

2SC5227A

Manufacturer:

Sanyo

File Size:

471.46 KB

Description:

Npn epitaxial planar silicon transistor.
