2SC522 SILICON NPN TRANSISTOR

2SC522 Description

SILICON NPN TRIPLE DIFFUSED TYPE (PCT PROCESS) 2SC524, HIGH FREQUENCY AMPLIFIER APPLICATIONS.HIGH VOLTAGE SWITCHING APPLICATIONS.REGULATOR APPLICA.

2SC522 Features

* High Breakdown Voltage : VCEO=100V (2SC522) : V CE0= 60V (2SC524)
* Useful attachment for Heat sink.
* Various Uses for Medium Power : I C=1.5A (Max. ), P C=10W (Max. ) gfe.39MAX SZfe.5MAX Unit in mm 00.45 il 11 l - . ^. , MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Colle

📥 Download Datasheet

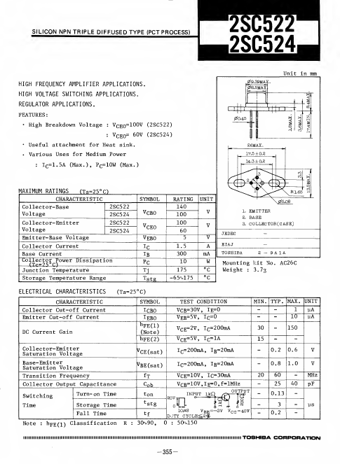

Preview of 2SC522 PDF
