2SC5246 Silicon NPN Transistor

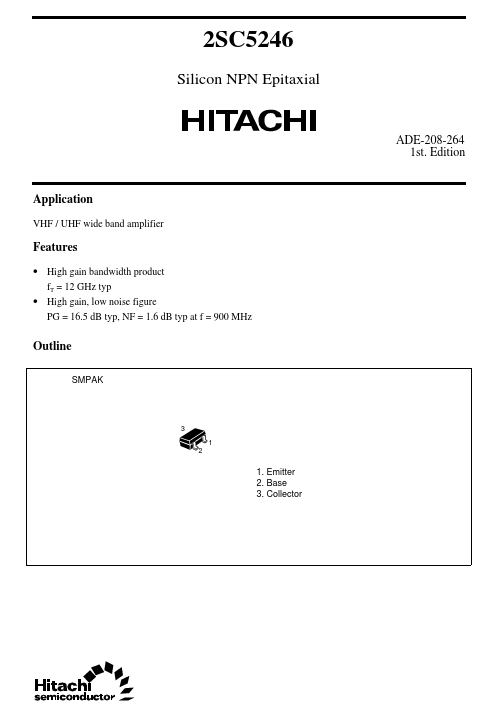

📥 Download Datasheet  Datasheet Preview Page 1

Description

2SC5246 Silicon NPN Epitaxial ADE-208-264 1st.Edition Application VHF / UHF wide band amplifier .

📥 Download Datasheet

Preview of 2SC5246 PDF

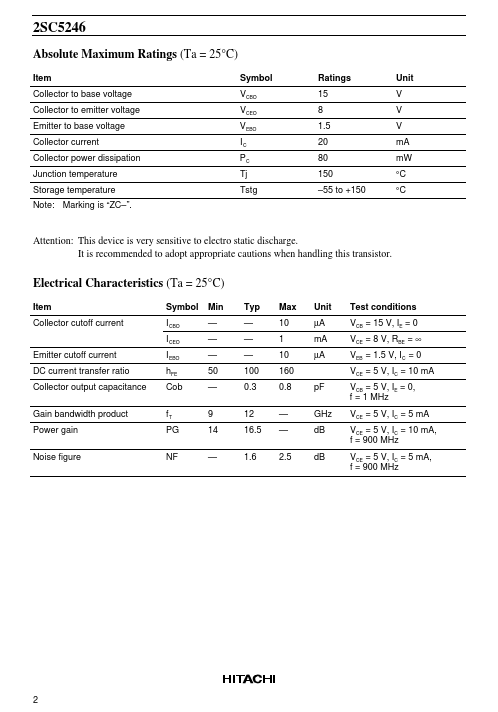

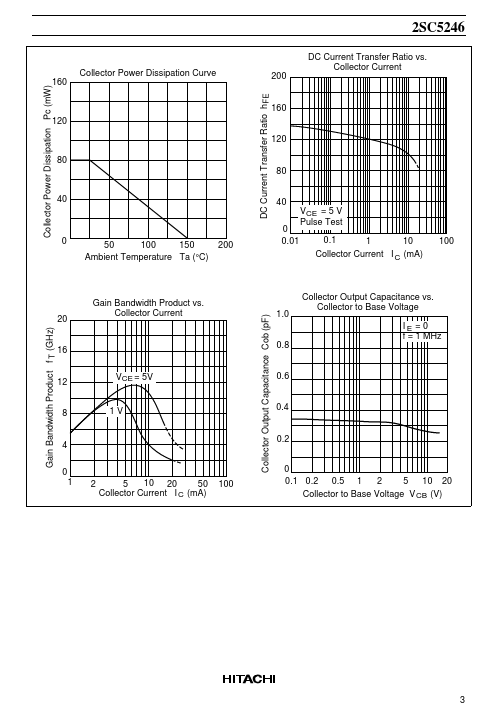

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SC5246
Manufacturer
Hitachi Semiconductor
File Size
64.69 KB
Datasheet
2SC5246_HitachiSemiconductor.pdf
Description
Silicon NPN Transistor

Features

* High gain bandwidth product fT = 12 GHz typ
* High gain, low noise figure PG = 16.5 dB typ, NF = 1.6 dB typ at f = 900 MHz Outline SMPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SC5246 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltag
