* q q q 1.5 1.5 Solder Dip s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Peak collector current Peak base current Collector power TC=25°C dissipation Ta=25°C Junction temperature Storage temperature
* Non-re
2SC5243
Panasonic Semiconductor
46.00 KB
Silicon npn transistor.

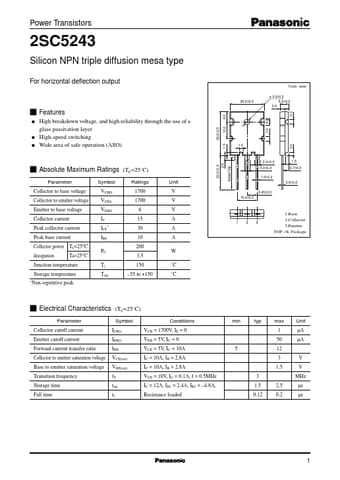

Power Transistors
2SC5243
Silicon NPN triple diffusion mesa type
For horizontal deflection output
20.0±0.5
Unit: mm
φ 3.3±0.2 5.0±0.3 3.0
6.0
s Fe.
