2SC5245 Datasheet - Sanyo Semicon Device

2SC5245, NPN Epitaxial Planar Silicon Transistor

Ordering number:EN5184A NPN Epitaxial Planar Silicon Transistor 2SC5245 UHF to S-Band Low-Noise Amplifier, OSC Applications .

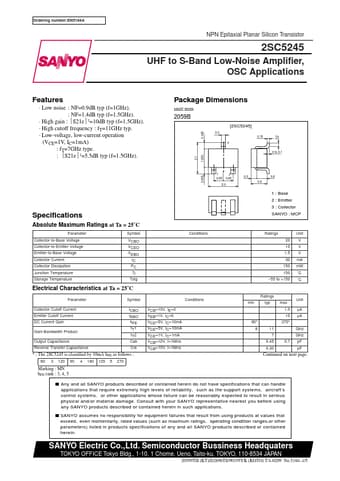

datasheet Preview Page 1 from Datasheet4u.com

2SC5245_SanyoSemiconDevice.pdf

2SC5245 Datasheet Preview — Preview of 2SC5245 PDF

Datasheet Details

Part number:

2SC5245

Manufacturer:

Sanyo Semicon Device

File Size:

152.87 KB

Description:

NPN Epitaxial Planar Silicon Transistor

Features

* Low noise : NF=0.9dB typ (f=1GHz). : NF=1.4dB typ (f=1.5GHz).
* High gain : S21e2=10dB typ (f=1.5GHz).
* High cutoff frequency : fT=11GHz typ.
* Low-voltage, low-current operation (VCE=1V, IC=1mA) : fT=7GHz type. : S21e2=5.5dB typ (f=1.5GHz). 0.425 Package Dimensions unit:mm
