* High breakdown voltage VCBO = 1500 V, IC = 12 A
* High speed switching tf = 0.2 µsec(typ) TO
* 3PFM (N) 1 2 3 1. Base 2. Collector 3. Emitter www.DataSheet4U.com 2SC5068A Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Em
2SC5068A
Hitachi
64.26 KB
Silicon npn triple diffused planar transistor.
www.DataSheet4U.com

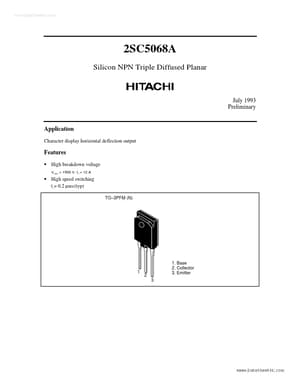

2SC5068A
Silicon NPN Triple Diffused Planar
July 1993 Preliminary
Application
Character display horizontal deflection output
F.
