BB402M - Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier

BB402M Description

BB402M Build in Biasing Circuit MOS FET IC VHF RF Amplifier ADE-208-716A (Z) 2nd.Edition Dec.1998 .

BB402M Features

* Build in Biasing Circuit; To reduce using parts cost & PC board space.
* Low noise characteristics; (NF = 1.7 dB typ. at f = 200 MHz)
* Withstanding to ESD; Build in ESD absorbing diode. Withstand up to 240V at C=200pF, Rs=0 conditions.
* Provide mini mold packages;

📥 Download Datasheet

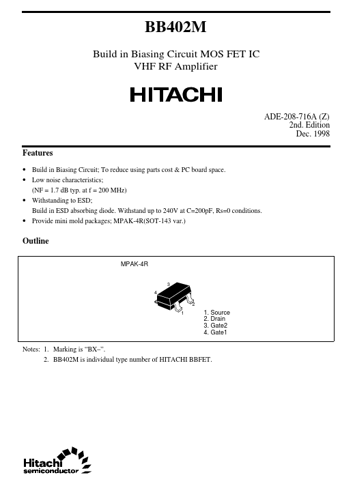

Preview of BB402M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB402M
Manufacturer
Hitachi
File Size
64.88 KB
Datasheet
BB402M_HitachiSemiconductor.pdf
Description
Build in Biasing Circuit MOS FET IC UHF/VHF RF Amplifier
