HT82M91A

3D USB Mouse

HT82M91A Features

* Complete Universal Serial Bus specification compatibility Serial Bus Interface Engine (SIE) USB transceiver Supports three buttons (R, M, L) and three axes (X, Y, Z) input Z axis can support two kinds of scroller input (optomechanical and mechanical)

HT82M91A General Description

HT82M91A is a 3D mouse encoder chip especially designed for USB applications. The HT82M91A can support the USB Standard Request as well as HID Class Request version 1.0. It can be briefly described as a Holtek 8-bit mC with an on-chip USB interface logic. It can use minimal external components to im.

HT82M91A Datasheet (85.19 KB)

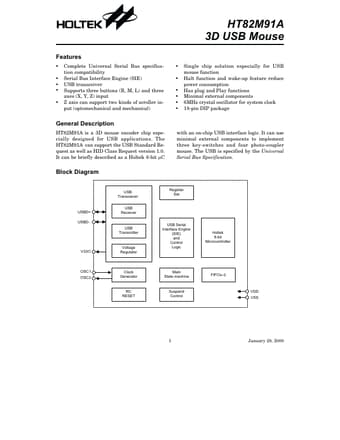

Preview of HT82M91A PDF

Datasheet Details

Part number:

HT82M91A

Manufacturer:

Holtek Semiconductor Inc

File Size:

85.19 KB

Description:

3d usb mouse.
