HT82M99EE

USB Mouse Encoder 8-Bit MCU

HT82M99EE Features

* Flexible total solution for applications that combine

* 128´8 data EEPROM

* 6MHz/12MHz internal CPU clock

* 4-level stacks

* Two 7-bit indirect addressing registers

* One 16-bit programmable timer counter with over- PS/2 and low-speed USB interface, such as mice, joysticks

HT82M99EE General Description

The USB MCU HT82M99EE/HT82M99AE are suitable for USB mouse and USB joystick devices. It consists of a Holtek high performance 8-bit MCU core for control unit, built-in USB SIE, 2K´14 program memory and 96 bytes data RAM. The mask version HT82M99AE is fully pin and functionally compatible with the OT.

HT82M99EE Datasheet (424.05 KB)

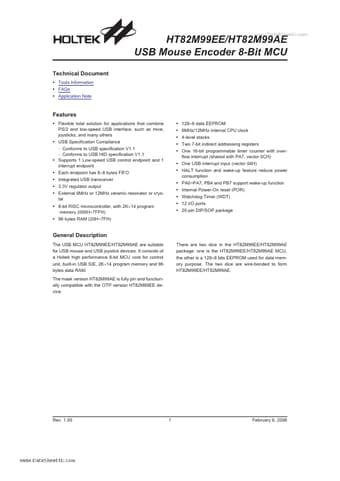

Preview of HT82M99EE PDF

Datasheet Details

Part number:

HT82M99EE

Manufacturer:

Holtek Semiconductor

File Size:

424.05 KB

Description:

Usb mouse encoder 8-bit mcu.
HT82M99EE/HT82M99AE USB Mouse Encoder 8-Bit MCU Technical Document
* Tools Information
* FAQs
* Application Note www.DataSheet4U.com Fea.
