HT82M99A

(HT82M99A/E) USB Mouse Encoder 8-Bit MCU

Holtek Semiconductor

HT82M99A Features

* Flexible total solution for applications that combine

* 96 bytes RAM (20H~7FH)

* 6MHz/12MHz internal CPU clock

* 4-level stacks

* Two 7-bit indirect addressing registers

* One 16-bit programmable timer counter with PS/2 and low-speed USB interface, such as mice, joysticks,

HT82M99A General Description

The USB MCU OTP body is suitable for USB mouse devices. It consists of a Holtek high performance 8-bit MCU core for control unit, built-in USB SIE, 2K´14 ROM and 96 bytes data RAM. www.DataSheet.net/ The mask version HT82M99A is fully pin and functionally compatible with the OTP version HT82M99E de.

HT82M99A Datasheet (421.70 KB)

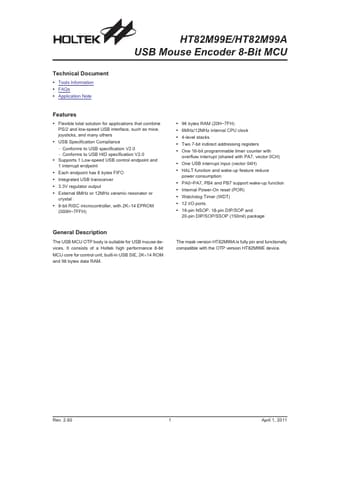

HT82M99A Datasheet Preview — Preview of HT82M99A PDF

Datasheet Details

Part number:

HT82M99A

Manufacturer:

Holtek Semiconductor

File Size:

421.70 KB

Description:

(ht82m99a/e) usb mouse encoder 8-bit mcu.
