HT82M980A

5-Key 3D WIN2000 USBPS/2 Mouse Controller

HT82M980A Features

* Operating voltage: 4.4V~5.25V

* Compatible with Microsoft Windows 2000 and

* Z axis can support two kinds of scroller input www.DataSheet4U.com (optomechanical and mechanical)

* Single chip solution especially for USB mouse 5-button Wheel Mouse

* Complete Universal Serial Bu

HT82M980A General Description

HT82M980A is a Plug and Play Windows 2000 and 5-button 3D USB+PS/2 Mouse controller. The HT82M980A can support the USB Standard Request as well as HID Class Request version 1.1. It is compatible with Microsoft Intelli 3D PS/2 mouse. The X/Y axis photo input with built-in Holtek¢s special dynamic pho.

HT82M980A Datasheet (132.29 KB)

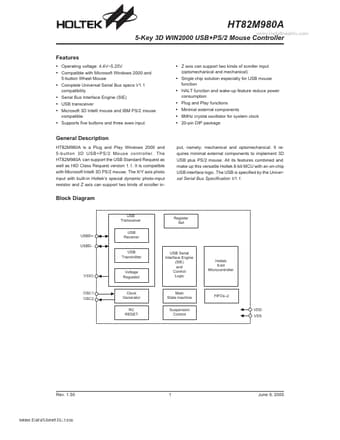

Preview of HT82M980A PDF

Datasheet Details

Part number:

HT82M980A

Manufacturer:

Holtek Semiconductor

File Size:

132.29 KB

Description:

5-key 3d win2000 usbps/2 mouse controller.
