BC2102 - Sub-1GHz OOK/FSK Transmitter

Product Overview

Holtek Semiconductor

📥 Download Datasheet

BC2102 Sub-1GHz OOK/FSK Transmitter by Holtek Semiconductor - Datasheet Preview — Datasheet preview – BC2102

Datasheet Details

Part number	BC2102
Manufacturer	Holtek Semiconductor
File Size	581.04 KB
Description	Sub-1GHz OOK/FSK Transmitter
Datasheet	BC2102 Datasheet

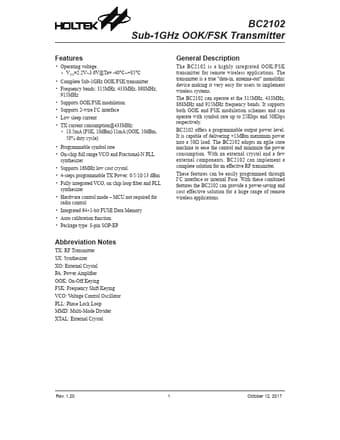

Additional preview pages of the BC2102 datasheet.

Product details

Features

Operating voltage:.
VDD=2.2V~3.6V@Ta= -40°C~+85°C.
Complete Sub-1GHz OOK/FSK transmitter.
Frequency bands: 315MHz, 433MHz, 868MHz, 915MHz.
Supports OOK/FSK modulation.
Supports 2-wire I2C interface.
Low sleep current.
TX current consumption@433MHz:.
18.5mA (FSK, 10dBm)/11mA (OOK, 10dBm, 50% duty cycle).
Programmable symbol rate.
On-chip full range VCO and Fractional-N PL.
