BC2401

315/433MHz Super-Regenerative OOK Rx IC

BC2401 Features

* RF-in to Data-out fully integrated function

* RF OOK demodulation

* Single voltage supply operation of 4.5V to 5.5V

* Symbol rate 5Ksps

* Frequency Band: 300MHz ~ 450MHz

* High sensitivity: -97dBm @ 5V/5Ksps/0.1%BER/315, 433.92MHz

* Op

BC2401 General Description

The BC2401 is a single chip OOK (On-Off keyed) RF receiver. The device will convert this RF input into a digital output signal, making it a genuine RF-in to Dataout integrated device and providing an easy to use solution for UHF receiver implementation. With few external components and low-current p.

BC2401 Datasheet (306.91 KB)

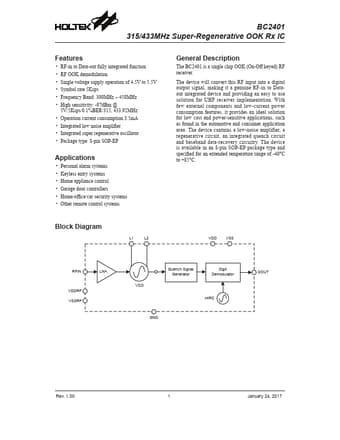

Preview of BC2401 PDF

Datasheet Details

Part number:

BC2401

Manufacturer:

Holtek Semiconductor

File Size:

306.91 KB

Description:

315/433mhz super-regenerative ook rx ic.
