BC2161 - Sub-1GHz OOK/GFSK Transmitter

Product Overview

Holtek Semiconductor

📥 Download Datasheet

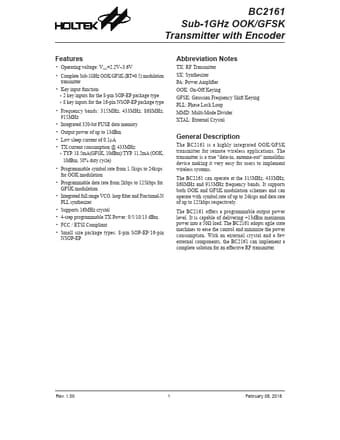

BC2161 Sub-1GHz OOK/GFSK Transmitter by Holtek Semiconductor - Datasheet Preview — Datasheet preview – BC2161

Datasheet Details

Part number	BC2161
Manufacturer	Holtek Semiconductor
File Size	708.92 KB
Description	Sub-1GHz OOK/GFSK Transmitter
Datasheet	BC2161 Datasheet
Additional preview pages of the BC2161 datasheet.

Product details

Features

Operating voltage: VDD=2.2V~3.6V.
Complete Sub-1GHz OOK/GFSK (BT=0.5) modulation transmitter.
Key input function.
2 key inputs for the 8-pin SOP-EP package type.
8 key inputs for the 16-pin NSOP-EP package type.
Frequency bands: 315MHz, 433MHz, 868MHz, 915MHz.
Integrated 320-bit FUSE data memory.
Output power of up to 13dBm.
Low sleep current of 0.1μA.
TX current consumption @ 433.
