HT16220G - RAM Mapping 32 x 8 LCD Controller

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT16220G RAM Mapping 32 x 8 LCD Controller by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT16220G

Datasheet Details

Part number	HT16220G
Manufacturer	Holtek Semiconductor
File Size	251.12 KB
Description	RAM Mapping 32 x 8 LCD Controller
Datasheet	HT16220G Datasheet
Note	This datasheet PDF includes multiple part numbers: HT16220G, HT16220. Please refer to the document for exact specifications by model.

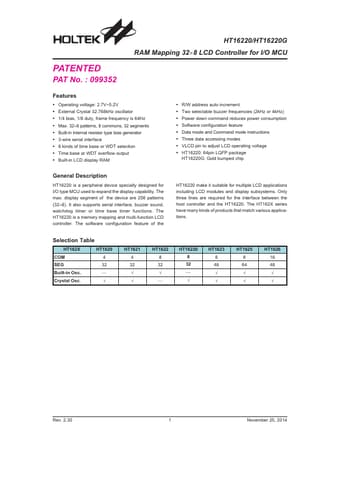

Additional preview pages of the HT16220G datasheet.

Product details

Description

HT16220 is a peripheral device specially designed for I/O type MCU used to expand the display capability.

Features

Operating voltage: 2.7V~5.2V.
External Crystal 32.768kHz oscillator.
1/4 bias, 1/8 duty, frame frequency is 64Hz.
Max. 32´8 patterns, 8 commons, 32 segments.
Built-in internal resistor type bias generator.
3-wire serial interface.
8 kinds of time base or WDT selection.
Time base or WDT overflow output.
Built-in LCD display RAM.
R/W address auto increment.
Two selectable buzzer frequencies (2kHz or 4kHz).
Power down command reduces pow.
