HT1628 - RAM Mapping 116 x 2 LCD Driver

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT1628 RAM Mapping 116 x 2 LCD Driver by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT1628

Datasheet Details

Part number	HT1628
Manufacturer	Holtek Semiconductor
File Size	407.23 KB
Description	RAM Mapping 116 x 2 LCD Driver
Datasheet	HT1628 Datasheet

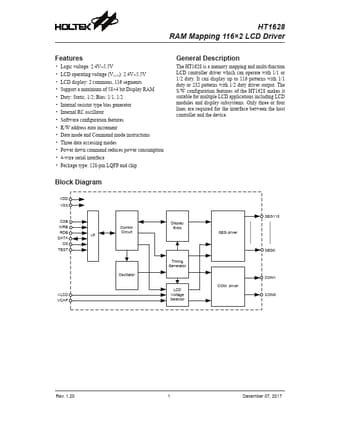

Additional preview pages of the HT1628 datasheet.

Product details

Description

The HT1628 is a memory mapping and multi-function LCD controller driver which can operate with 1/1 or 1/2 duty.

Features

Logic voltage: 2.4V~5.5V.
LCD operating voltage (VLCD): 2.4V~5.5V.
LCD display: 2 commons, 116 segments.
Support a maximum of 58×4 bit Display RAM.
Duty: Static, 1/2; Bias: 1/1, 1/2.
Internal resistor type bias generator.
Internal RC oscillator.
Software configuration features.
R/W address auto increment.
Data mode and Command mode instructions.
Three data accessing modes.
Pow.
