HT1622G

RAM Mapping 64 x 16 LCD Controller

HT1622G Features

* Operating voltage: 2.7V~5.2V

* Built-in RC oscillator

* 1/4 bias, 1/8 duty, frame frequency is 64Hz

* Max. 32´8 patterns, 8 commons, 32 segments

* Built-in internal resistor type bias generator

* 3-wire serial interface

* 8 kinds of time base or WDT selection

* Time

HT1622G General Description

HT1622 is a peripheral device specially designed for I/O type MCU used to expand the display capability. The max. display segment of the device are 256 patterns (32´8). It also supports serial interface, buzzer.

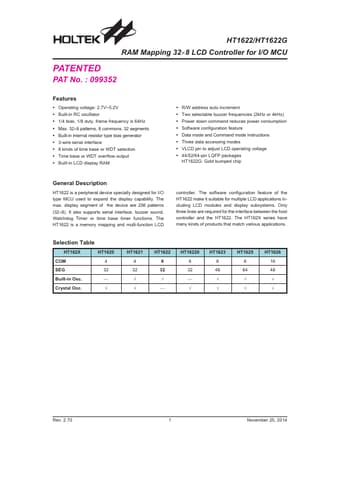

HT1622G Datasheet (153.00 KB)
