HT82A520R - (HT82A520R / HT82A620R) Full Speed USB 8bit OTP MCU

Datasheet Summary

Description

The HT82A520R/HT82A620R are 8-bit high performance RISC-like microcontrollers designed for USB keyboard mouse and joystick product applications.

Features

  • Operating voltage:.
  • Max. 4 endpoints supported - endpoint 0 included.
  • All endpoints support Interrupt, & bulk transfer.
  • Endpoint 0 supports control, interrupt and bulk fSYS = 6MHz: 2.2V~5.5V fSYS = 12MHz: 4.0V~5.5V.
  • 4K´15 Program Memory.
  • 160´8 data memory RAM.
  • USB 2.0 Full Speed Compatible.
  • Single external interrupt input shared with I/O line.
  • Single 16-bit programmable Timer/Event Counters transfer.
  • All endpoints except endpoint 0 can be conf.

📥 Download Datasheet

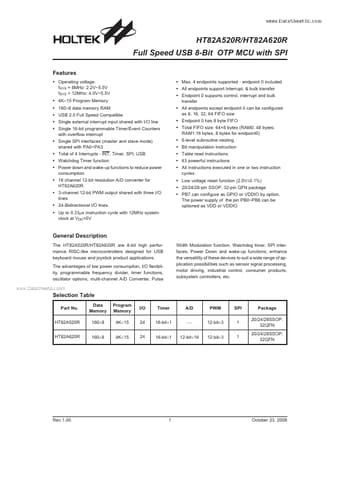

Datasheet preview – HT82A520R

Datasheet Details

Part number HT82A520R
Manufacturer Holtek Semiconductor
File Size 585.37 KB
Description (HT82A520R / HT82A620R) Full Speed USB 8bit OTP MCU
Datasheet download datasheet HT82A520R Datasheet
Additional preview pages of the HT82A520R datasheet.
