HT82A6208 - A/D Type Full Speed USB 8-Bit MCU

Product Overview

Holtek Semiconductor

Datasheet Details

Part number	HT82A6208
Manufacturer	Holtek Semiconductor
File Size	1.36 MB
Description	A/D Type Full Speed USB 8-Bit MCU
Datasheet	HT82A6208 Datasheet
Note	This datasheet PDF includes multiple part numbers: HT82A6208, HT82A623R. Please refer to the document for exact specifications by model.

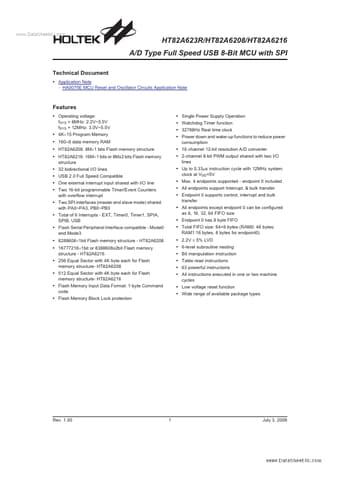

Additional preview pages of the HT82A6208 datasheet.

Product details

Description

The HT82A623R, HT82A6208 and HT82A6216 are 8-bit high performance RISC-like microcontrollers designed for USB keyboard, mouse and joystick product applications.

Features

Operating voltage:.
Single Power Supply Operation.
Watchdog Timer function.
32768Hz Real time clock.
Power down and wake-up functions to reduce power fSYS = 6MHz: 2.2V~5.5V fSYS = 12MHz: 3.0V~5.5V.
4K´15 Program Memory.
160´8 data memory RAM.
HT82A6208: 8M´1 bits Flash memory structure.
HT82A6216: 16M´1 bits or 8Mx2 bits Flash memory consumption.
16 channel 12-bit resolution A/D converter.
2-channel 8-bit PWM output shared with two I/O s.
