HT82A623R

A/D Type Full Speed USB 8-Bit MCU

Holtek Semiconductor

HT82A623R Features

* Operating voltage:

* Single Power Supply Operation

* Watchdog Timer function

* 32768Hz Real time clock

* Power down and wake-up functions to reduce power fSYS = 6MHz: 2.2V~5.5V fSYS = 12MHz: 3.0V~5.5V

* 4K´15 Program Memory

* 160´8 data memory RAM

* HT82A6208: 8M´1

HT82A623R General Description

The HT82A623R, HT82A6208 and HT82A6216 are 8-bit high performance RISC-like microcontrollers designed for USB keyboard, mouse and joystick product applications. The devices are also suitable for use in home appliances, particularly for use in high-level household appliances such as microwave ovens, .

HT82A623R Datasheet (1.36 MB)

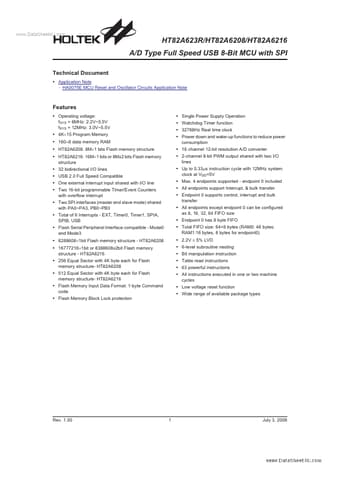

HT82A623R Datasheet Preview — Preview of HT82A623R PDF

Datasheet Details

Part number:

HT82A623R

Manufacturer:

Holtek Semiconductor

File Size:

1.36 MB

Description:

A/d type full speed usb 8-bit mcu.
www.DataSheet4U.com HT82A623R/HT82A6208/HT82A6216 A/D Type Full Speed USB 8-Bit MCU with SPI Technical Document
* Application Note - HA0075E MCU .
