HT82A525R

I/O Type USB 8-Bit OTP MCU

Holtek Semiconductor

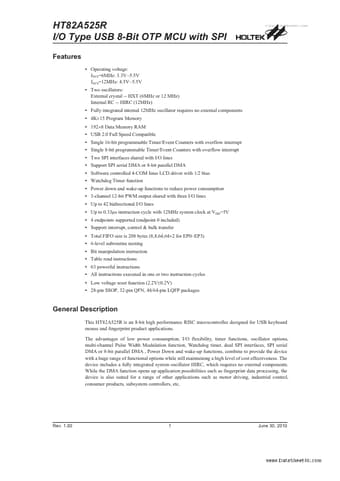

HT82A525R Features

* www.DataSheet4U.com Operating voltage: fSYS=6MHz: 3.3V~5.5V fSYS=12MHz: 4.5V~5.5V Two oscillators: External crystal

* HXT (6MHz or 12 MHz) Internal RC

* HIRC (12MHz) Fully integrated internal 12MHz oscillator requires no external components 4K´15 Program Memory 192´8 Data Mem

HT82A525R General Description

This HT82A525R is an 8-bit high performance RISC microcontroller designed for USB keyboard mouse and fingerprint product applications. The advantages of low power consumption, I/O flexibility, timer functions, oscillator options, multi-channel Pulse Width Modulation function, Watchdog timer, dual SP.

HT82A525R Datasheet (558.33 KB)

HT82A525R Datasheet Preview — Preview of HT82A525R PDF

Datasheet Details

Part number:

HT82A525R

Manufacturer:

Holtek Semiconductor

File Size:

558.33 KB

Description:

I/o type usb 8-bit otp mcu.
