HT82D20A, HT82D20R, 27MHz One Channel RX 8-Bit MCU

HT82D20R/HT82D20A 27MHz One Channel RX 8-Bit MCU .
USB Encoder Built-in one 27MHz FSK receiver MCU OTP body is suitable for USB interface and 27MHz Wireless system.

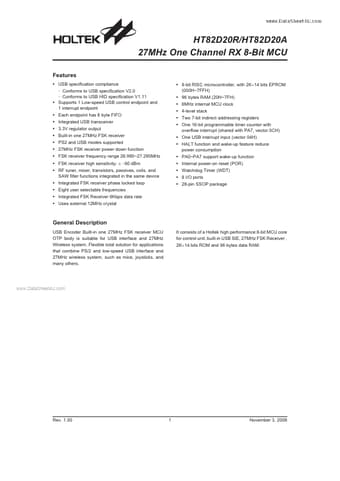

datasheet Preview Page 1 from Datasheet4u.com

HT82D20R_HoltekSemiconductor.pdf

HT82D20A Datasheet Preview — This datasheet PDF includes multiple part numbers: HT82D20A, HT82D20R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HT82D20A, HT82D20R

Manufacturer:

Holtek Semiconductor

File Size:

378.48 KB

Description:

27MHz One Channel RX 8-Bit MCU

Note:

This datasheet PDF includes multiple part numbers: HT82D20A, HT82D20R.
Please refer to the document for exact specifications by model.

Features

* USB specification compliance - Conforms to USB specification V2.0 - Conforms to USB HID specification V1.11
* Supports 1 Low-speed USB control endpoint and
* 8-bit RISC microcontroller, with 2K´14 bits EPROM (000H~7FFH)
* 96 bytes RAM (20H~7FH)
* 6MHz internal MCU clock

Applications

* that combine PS/2 and low-speed USB interface and 27MHz wireless system, such as mice, joysticks, and many others. It consists of a Holtek high performance 8-bit MCU core for control unit, built-in USB SIE, 27MHz FSK Receiver , 2K´14 bits ROM and 96 bytes data RAM. www. DataSheet4U. com Rev. 1.00 1
