HT82D20R

27MHz One Channel RX 8-Bit MCU

HT82D20R Features

* USB specification compliance - Conforms to USB specification V2.0 - Conforms to USB HID specification V1.11

* Supports 1 Low-speed USB control endpoint and

* 8-bit RISC microcontroller, with 2K´14 bits EPROM (000H~7FFH)

* 96 bytes RAM (20H~7FH)

* 6MHz internal MCU clock

HT82D20R General Description

USB Encoder Built-in one 27MHz FSK receiver MCU OTP body is suitable for USB interface and 27MHz Wireless system. Flexible total solution for applications that combine PS/2 and low-speed USB interface and 27MHz wireless system, such as mice, joysticks, and many others. It consists of a Holtek high p.

HT82D20R Datasheet (378.48 KB)

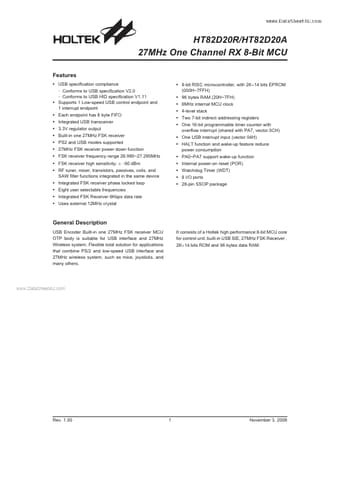

Preview of HT82D20R PDF

Datasheet Details

Part number:

HT82D20R

Manufacturer:

Holtek Semiconductor

File Size:

378.48 KB

Description:

27mhz one channel rx 8-bit mcu.
