HT7125-1 - 30mA Low Power LDO

This page provides the datasheet information for the HT7125-1, a member of the HT7121-1 30mA Low Power LDO family.

Datasheet Summary

Description

The HT71XX-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology.

They allow input voltages as high as 24V.

They are available with several fixed output voltages ranging from 2.1V to 5.0V.

Features

  • Low power consumption.
  • Low voltage drop.
  • Low temperature coefficient.

📥 Download Datasheet

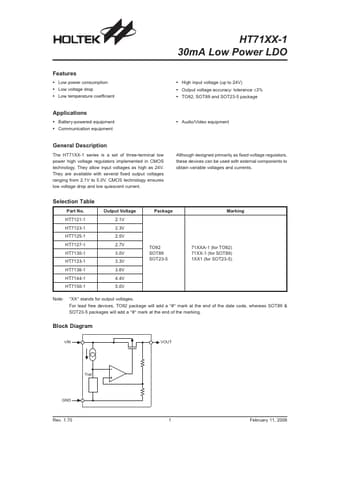

Datasheet preview – HT7125-1

Datasheet Details

Part number HT7125-1
Manufacturer Holtek
File Size 138.99 KB
Description 30mA Low Power LDO
Datasheet download datasheet HT7125-1 Datasheet
Additional preview pages of the HT7125-1 datasheet.

📁 Similar Datasheet

  • HT7123A - 330MHz Triple 10-Bit High Speed Video DAC (HTCSEMI)
  • HT7126A - 31/2 Digit LCD / A/D Converter (HTCSEMI)
  • HT7130 - High Voltage Regulator (Holtek Semiconductor Inc)
  • HT7133 - High Voltage Regulator (Holtek Semiconductor Inc)
  • HT7135A - 4 1/2-DIGIT PRECISION ANALOG-TO-DIGITAL CONVERTERS (HTCSEMI)
  • HT7136 - High Voltage Regulator (Holtek Semiconductor Inc)
  • HT7144 - High Voltage Regulator (Holtek Semiconductor Inc)
  • HT7150 - High Voltage Regulator (Holtek Semiconductor Inc)
  • HT7178 - Synchronous boost converter (HEROIC)
  • HT71782 - 15A Fully-Integrated Synchronous Boost Converter (HEROIC)
Other Datasheets by Holtek

Full PDF Text Transcription

Click to expand full text
HT71XX-1 30mA Low Power LDO Features · Low power consumption · Low voltage drop · Low temperature coefficient Applications · Battery-powered equipment · Communication equipment · High input voltage (up to 24V) · Output voltage accuracy: tolerance ±3% · TO92, SOT89 and SOT23-5 package · Audio/Video equipment General Description The HT71XX-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
