HMC1512 - Magnetic Displacement Sensors

This page provides the datasheet information for the HMC1512, a member of the HMC1501 Magnetic Displacement Sensors family.

Datasheet Summary

Features

  •  Wide Angular Range  Effective Linear Range  Absolute Sensing  Low Cost  Available in Tape & Reel Packaging  4-Element Wheatstone Bridges  Surface Mount Sensors  Low Voltage Operations (2.0V).

📥 Download Datasheet

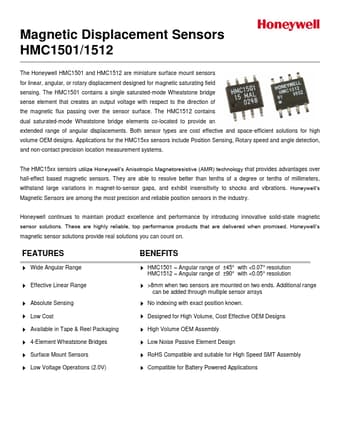

Datasheet preview – HMC1512

Datasheet Details

Part number HMC1512
Manufacturer Honeywell
File Size 726.15 KB
Description Magnetic Displacement Sensors
Datasheet download datasheet HMC1512 Datasheet
Additional preview pages of the HMC1512 datasheet.
