HMC156 - GaAs MMIC PASSIVE FREQUENCY DOUBLER

Datasheet Summary

Description

The HMC156 is a miniature frequency doubler in a MMIC die.

Suppression of undesired fundamental and higher order harmonics is 38 dB typical with respect to input signal levels.

Features

  • Conversion Loss: 15 dB Fo, 3Fo, 4Fo Isolation: 38 dB Input Drive Level: 10 to 20 dBm Typical.

📥 Download Datasheet

Datasheet preview – HMC156

Datasheet Details

Part number HMC156
Manufacturer Hittite Microwave Corporation
File Size 83.24 KB
Description GaAs MMIC PASSIVE FREQUENCY DOUBLER
Datasheet download datasheet HMC156 Datasheet
Additional preview pages of the HMC156 datasheet.

📁 Similar Datasheet

  • HMC156AC8 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER (Analog Devices)
  • HMC1501 - Magnetic Displacement Sensors (Honeywell)
  • HMC1512 - Magnetic Displacement Sensors (Honeywell)
  • HMC158C8 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER (Analog Devices)
  • HMC1001 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1002 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1010LP4E - RMS POWER DETECTOR (Analog Devices)
  • HMC1013LP4E - SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (Analog Devices)
  • HMC1014 - POWER AMPLIFIER (Analog Devices)
  • HMC1015 - GaAs MMIC FUNDAMENTAL MIXER (Analog Devices)
Other Datasheets by Hittite Microwave Corporation
  • HMC156A - GaAs MMIC PASSIVE FREQUENCY DOUBLER
  • HMC156C8 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER
  • HMC154S8 - GaAs MMIC SMT LOW DISTORTION T/R SWITCH
  • HMC158 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER
  • HMC121 - GaAs MMIC VOLTAGE-VARIABLE ATTENUATOR
  • HMC141 - GaAs MMIC DOUBLE-BALANCED MIXER
  • HMC141C8 - GaAs MMIC SMT DOUBLEBALANCED MIXER
  • HMC142 - GaAs MMIC DOUBLE-BALANCED MIXER

Full PDF Text Transcription

Click to expand full text

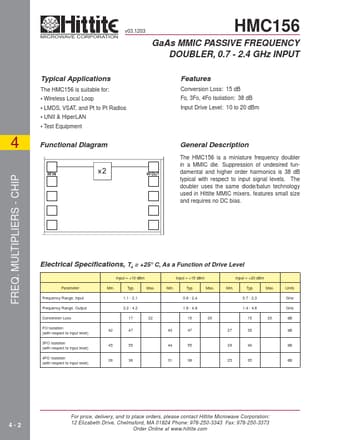

v03.1203 MICROWAVE CORPORATION HMC156 GaAs MMIC PASSIVE FREQUENCY DOUBLER, 0.7 - 2.4 GHz INPUT Features Conversion Loss: 15 dB Fo, 3Fo, 4Fo Isolation: 38 dB Input Drive Level: 10 to 20 dBm Typical Applications The HMC156 is suitable for: • Wireless Local Loop • LMDS, VSAT, and Pt to Pt Radios • UNII & HiperLAN • Test Equipment 4 FREQ. MULTIPLIERS - CHIP Functional Diagram General Description The HMC156 is a miniature frequency doubler in a MMIC die. Suppression of undesired fundamental and higher order harmonics is 38 dB typical with respect to input signal levels. The doubler uses the same diode/balun technology used in Hittite MMIC mixers, features small size and requires no DC bias.
