HMC156A - GaAs MMIC PASSIVE FREQUENCY DOUBLER

Datasheet Summary

Description

The HMC156A is a miniature frequency doubler in a MMIC die.

Suppression of undesired fundamental and higher order harmonics is 38 dB typical with respect to input signal levels.

Features

  • Conversion Loss: 15 dB Fo, 3Fo, 4Fo Isolation: 38 dB Input Drive Level: 10 to 20 dBm General.

📥 Download Datasheet

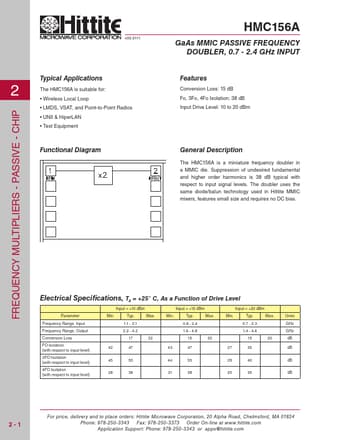

Datasheet preview – HMC156A

Datasheet Details

Part number HMC156A
Manufacturer Hittite Microwave Corporation
File Size 111.19 KB
Description GaAs MMIC PASSIVE FREQUENCY DOUBLER
Datasheet download datasheet HMC156A Datasheet
Additional preview pages of the HMC156A datasheet.

📁 Similar Datasheet

  • HMC156AC8 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER (Analog Devices)
  • HMC1501 - Magnetic Displacement Sensors (Honeywell)
  • HMC1512 - Magnetic Displacement Sensors (Honeywell)
  • HMC158C8 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER (Analog Devices)
  • HMC1001 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1002 - 1- and 2-Axis Magnetic Sensors (HONEYWELL)
  • HMC1010LP4E - RMS POWER DETECTOR (Analog Devices)
  • HMC1013LP4E - SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (Analog Devices)
  • HMC1014 - POWER AMPLIFIER (Analog Devices)
  • HMC1015 - GaAs MMIC FUNDAMENTAL MIXER (Analog Devices)
Other Datasheets by Hittite Microwave Corporation
  • HMC156 - GaAs MMIC PASSIVE FREQUENCY DOUBLER
  • HMC156C8 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER
  • HMC154S8 - GaAs MMIC SMT LOW DISTORTION T/R SWITCH
  • HMC158 - GaAs MMIC SMT PASSIVE FREQUENCY DOUBLER
  • HMC121 - GaAs MMIC VOLTAGE-VARIABLE ATTENUATOR
  • HMC141 - GaAs MMIC DOUBLE-BALANCED MIXER
  • HMC141C8 - GaAs MMIC SMT DOUBLEBALANCED MIXER
  • HMC142 - GaAs MMIC DOUBLE-BALANCED MIXER

Full PDF Text Transcription

Click to expand full text
FREQUency MULTIPLIERS - Passive - CHIP v00.0111 Typical Applications 2 The HMC156A is suitable for: • Wireless Local Loop • LMDS, VSAT, and Point-to-Point Radios • UNII & HiperLAN • Test Equipment Functional Diagram HMC156A GaAs MMIC PASSIVE FREQUENCY DOUBLER, 0.7 - 2.4 GHz INPUT Features Conversion Loss: 15 dB Fo, 3Fo, 4Fo Isolation: 38 dB Input Drive Level: 10 to 20 dBm General Description The HMC156A is a miniature frequency doubler in a MMIC die. Suppression of undesired fundamental and higher order harmonics is 38 dB typical with respect to input signal levels. The doubler uses the same diode/balun technology used in Hittite MMIC mixers, features small size and requires no DC bias.
