HXY3134CI Datasheet - HuaXuanYang

HXY3134CI - N-Channel Enhancement Mode MOSFET

HXY3134CI Features

* VDS = 20V ID =0.8A RDS(ON) < 250mΩ@ VGS=4.5V RDS(ON) < 360mΩ@ VGS=2.5V Application Battery protection Load switch Uninterruptible power supply HXY3134CI N-Channel Enhancement Mode MOSFET D S G SOT-523 G! D ! " !" " " ! S N-Channel MOSFET Package Marking and Ordering Information Product ID

HXY3134CI-HuaXuanYang.pdf

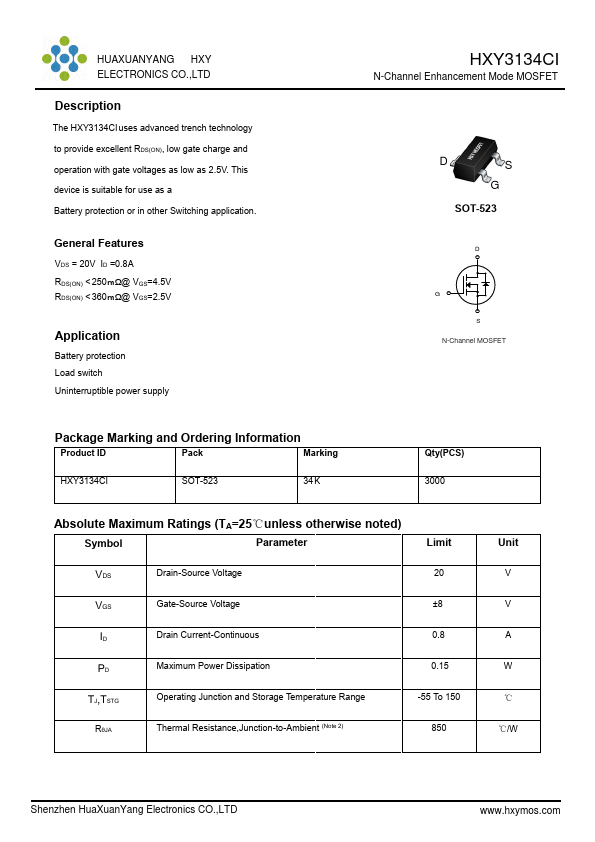

Preview of HXY3134CI PDF

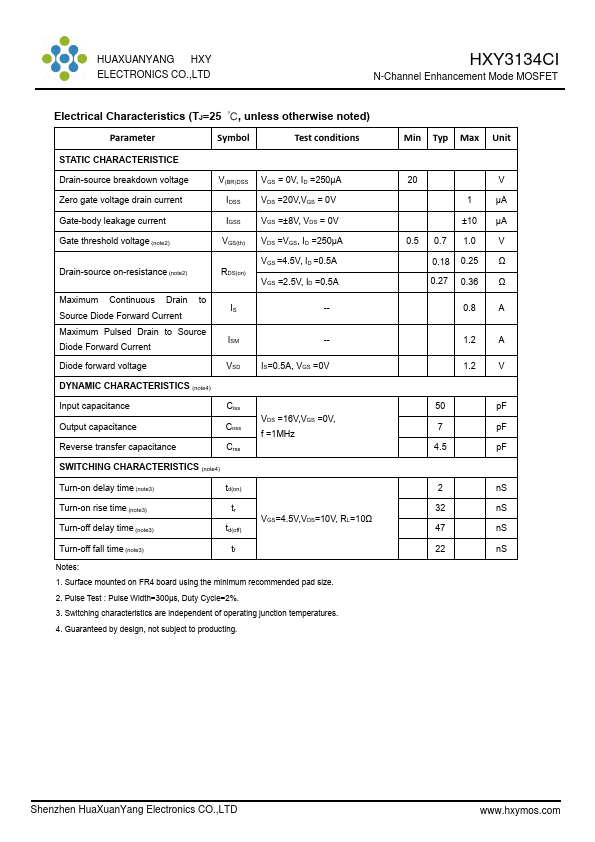

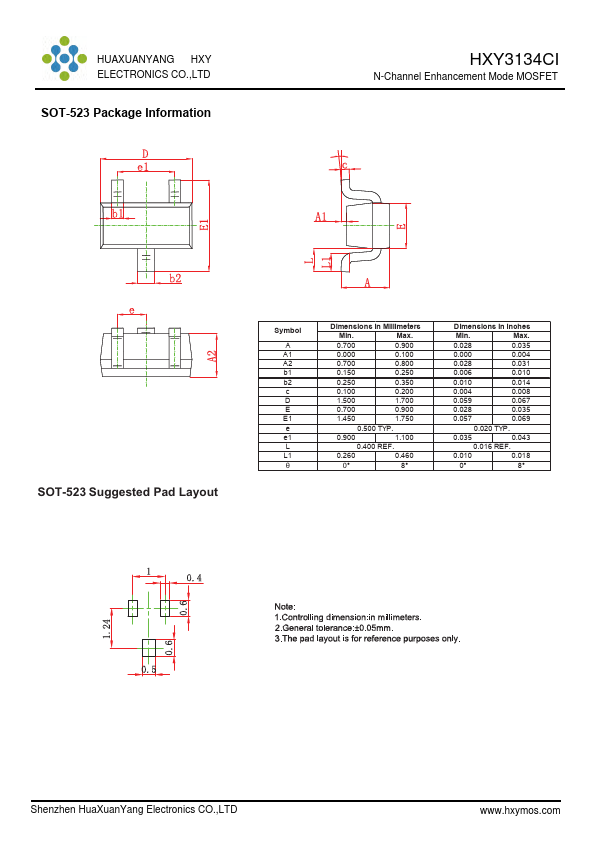

HXY3134CI Datasheet Preview Page 2 HXY3134CI Datasheet Preview Page 3

Datasheet Details

Part number:

HXY3134CI

Manufacturer:

HuaXuanYang

File Size:

399.10 KB

Description:

N-channel enhancement mode mosfet.

📁 Related Datasheet

HXY5N10MI

📌 All Tags

HXY3134CI N-Channel Enhancement Mode MOSFET HuaXuanYang
