CS3205B8

Silicon N-Channel Power MOSFET

CS3205B8 Features

* l Fast Switching l Low ON Resistance(Rdson≤8.5mΩ) l Low Gate Charge (Typical Data:74nC) l Low Reverse transfer capacitances(Typical:68pF) l 100% Single Pulse avalanche energy Test Applications: Automotive、DC Motor Control and Class D Amplifier. Absolute(Tc= 25℃ unless otherwise specified): Sym

CS3205B8 General Description

VDSS 55 V CS3205 B8, the silicon N-channel Enhanced ID(Silicon limited current) 120 A VDMOSFETs, is obtained by the self-aligned planar PD(TC=25℃) 230 W Technology which reduce the conduction loss, improve RDS(ON)Typ 7.6 mΩ switching performance and enhance the avalanche energy. The tr.

CS3205B8 Datasheet (427.95 KB)

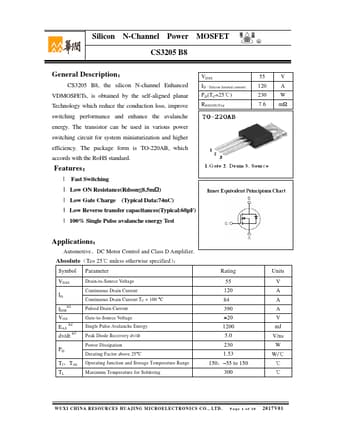

Preview of CS3205B8 PDF

Datasheet Details

Part number:

CS3205B8

Manufacturer:

Huajing Microelectronics

File Size:

427.95 KB

Description:

Silicon n-channel power mosfet.
