HY62V8400A Datasheet (Hynix Semiconductor)

HY62V8400A, Low Power CMOS slow SRAM

and is subject to change without notice.

Hynix Electronics does not assume any responsibility for use of circuits described.

No patent licenses are implied.

Rev 06 / Apr.

2001 Hynix Semiconductor HY62V8400A Series DESCRIPTION The HY62V8400A is a high-speed, low power and 4M bits CMOS SRAM organize

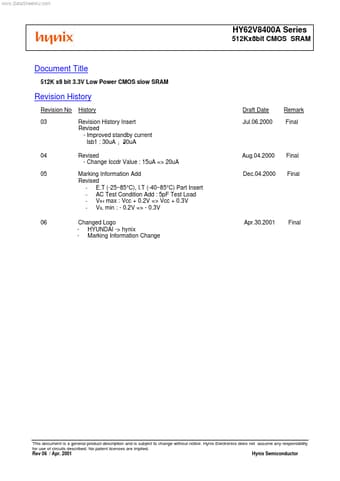

www.DataSheet4U.com HY62V8400A Series 512Kx8bit CMOS SRAM Document Title 512K x8 bit 3.3V Low Power CMOS slow SRAM Revision History Revision No 03 History Revision History Insert Revised - Improved standby current Isb1 : 30uA ¡ æ 20uA Revised - Change Iccdr Value : 15uA => 20uA Marking Information Add Revised - E.T (-25~85°C), I.T (-40~85°C) Part Insert - AC Test Condition Add : 5pF Test Load - VIH max : Vcc + 0.2V => Vcc + 0.3V - VIL min : - 0.2V => - 0.3V Changed Logo - HYUNDAI -> hynix - M

HY62V8400A Features

* Fully static operation and Tri-state outputs TTL compatible inputs and outputs Low power consumption Battery backup(LL-part) -. 2.0V(min) data retention

* Standard pin configuration -. 32pin 525mil SOP -. 32pin 400mil TSOP-II (Standard and Reversed) St
