AT78L18

100mA Positive Voltage Regulator

AT78L18 Features

* Internal Short-Circuit Current Limiting Internal Thermal Overload Protection No External Components Required Output Current Up to 100mA Output Voltage Tolerances of 3% Available in TO-92 and SOT-89-3L Package Direct replacement for LM78L00, µA78L00 and AN78L00 Series. APPLICATION Bias Supply for Ana

AT78L18 General Description

The AT78L00 series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. When used as a zener diode/resistor combination replacement, the AT78L00 usually results in an effective output impedance improvement of two or.

AT78L18 Datasheet (329.86 KB)

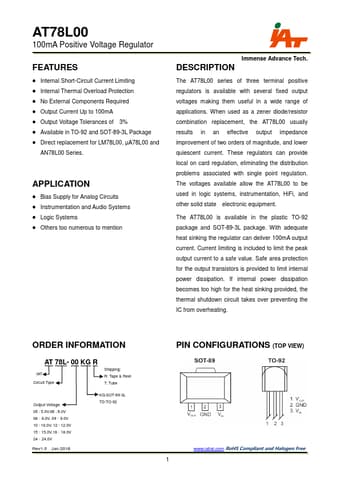

Preview of AT78L18 PDF

Datasheet Details

Part number:

AT78L18

Manufacturer:

IAT

File Size:

329.86 KB

Description:

100ma positive voltage regulator.
