ICM7542

12/10/8-Bit Low Power Dual DACs

ICM7542 Features

* 12/10/8-Bit Dual DAC in 08 Lead MSOP Package

* Ultra-Low Power Consumption

* Guaranteed Monotonic

* Wide Output Voltage Swing

* Three-wire SPI/QSP and Microwire Interface Compatible

* Three Software-Selectable Power-Down Output Impedances (1 K Ohm, 1

ICM7542 General Description

(8 Lead MSOP) Pin 1 2 3 4 5 6 7 8 Name VDD GND CS SCK SDI REFIN VOA VOB I/O I I I I I I O O Supply Voltage Ground Active Low Chip Select (CMOS) Serial Clock Input (CMOS) Serial Data Input (CMOS) Reference Voltage Input to DAC A-B DAC A Output Voltage DAC B Output Voltage Description 2 Rev. A6 .

ICM7542 Datasheet (212.49 KB)

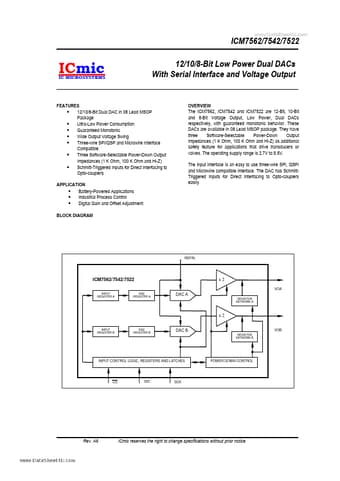

Preview of ICM7542 PDF

Datasheet Details

Part number:

ICM7542

Manufacturer:

IC MICROSYSTEMS

File Size:

212.49 KB

Description:

12/10/8-bit low power dual dacs.
