ICM7555CN

General purpose CMOS timer

ICM7555CN Features

* I Exact equivalent in most applications for NE/SE555 I Low supply current: 80 µA (typical) I Extremely low trigger, threshold, and reset currents: 20 pA (typical) I High-speed operation: 500 kHz guaranteed I Wide operating supply voltage range guaranteed 3 V to 16 V over full automotive temperatures

ICM7555CN General Description

The ICM7555 is a CMOS timer providing significantly improved performance over the standard NE/SE555 timer, while at the same time being a direct replacement for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIG.

ICM7555CN Datasheet (106.89 KB)

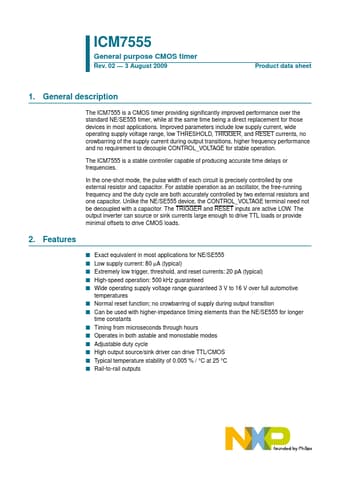

Preview of ICM7555CN PDF

Datasheet Details

Part number:

ICM7555CN

Manufacturer:

NXP ↗

File Size:

106.89 KB

Description:

General purpose cmos timer.
