ICM7543

12/10/8-Bit Low Power Quad DACs

ICM7543 Features

* 12/10/8-Bit Quad DAC in 10 Lead MSOP Package

* Ultra-Low Power Consumption

* Guaranteed Monotonic

* Wide Voltage Swing Output Buffer

* Three-wire SPI/QSP and Microwire Interface Compatible

* Three Software-Selectable Power-Down Output Impedances (1 K

ICM7543 General Description

(10 Lead MSOP) Pin 1 2 3 4 5 6 7 8 9 10 Name CS SCK VDD GND SDI REFIN VOA VOB VOC VOD I/O I I I I I I O O O O Active Low Chip Select (CMOS) Serial Clock Input (CMOS) Supply Voltage Ground Serial Data Input (CMOS) Reference Voltage Input to DAC A-B-C-D DAC A Output Voltage DAC B Output Voltage DAC.

ICM7543 Datasheet (220.19 KB)

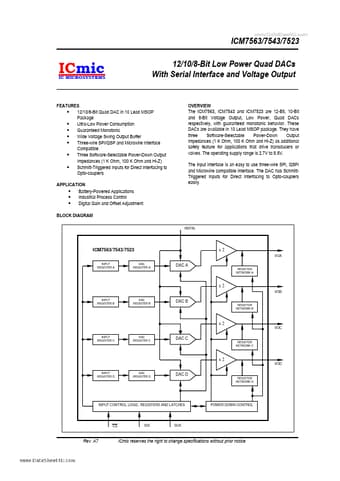

Preview of ICM7543 PDF

Datasheet Details

Part number:

ICM7543

Manufacturer:

IC MICROSYSTEMS

File Size:

220.19 KB

Description:

12/10/8-bit low power quad dacs.
