ICM7555IN, ICM7555 Datasheet - NXP

ICM7555IN General purpose CMOS timer

The ICM7555 is a CMOS timer providing significantly improved performance over the standard NE/SE555 timer, while at the same time being a direct replacement for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIG.

ICM7555IN Features

* I Exact equivalent in most applications for NE/SE555 I Low supply current: 80 µA (typical) I Extremely low trigger, threshold, and reset currents: 20 pA (typical) I High-speed operation: 500 kHz guaranteed I Wide operating supply voltage range guaranteed 3 V to 16 V over full automotive temperatures

ICM7555_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: ICM7555IN, ICM7555. Please refer to the document for exact specifications by model.

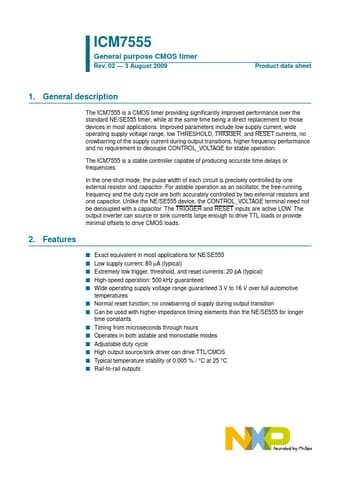

ICM7555IN Datasheet Preview Page 2 ICM7555IN Datasheet Preview Page 3
