IP1001LF

Integrated 10/100/1000 Gigabit Ethernet Transceiver

IP1001LF Features

* IEEE 802.3 compliant 1000BASE-T, 100BASE-TX, and 10BASE-T Support auto-negotiation Support timing programmable MII/ GMII/ RGMII (delay clock, and driving current etc.) Support 3 power saving modes Support software based Smart Cable Analyzer (SCA) Support auto MDI/MDIX (auto negotiation or force mode

IP1001LF General Description

IP1001 is an integrated physical layer device for 1000BASE-T, 100BASE-TX, and 10BASE-T applications. IP1001 supports MII, GMII and RGMII for different types of 10/100/1000Mb Media Access Controller (MAC). It supports Auto MDI/MDIX function to simplify the network installation and reduce the system m.

IP1001LF Datasheet (1.01 MB)

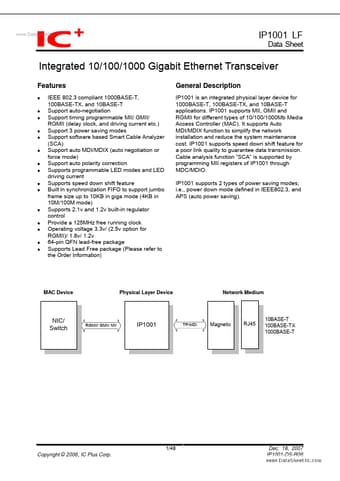

Preview of IP1001LF PDF

Datasheet Details

Part number:

IP1001LF

Manufacturer:

IC Plus

File Size:

1.01 MB

Description:

Integrated 10/100/1000 gigabit ethernet transceiver.
