IP100ALF - Integrated 10/100 Ethernet MAC PHY

IP100ALF Description

www.DataSheet4U.com IP100A LF Preliminary Data Sheet Integrated 10/100 Ethernet MAC + PHY .
The IP100A LF is a single-chip, full duplex, 10/100Mbps Ethernet MAC + PHY incorporating a 32-bit PCI with bus master support.

IP100ALF Features

* Single chip 10/100BASE, half or full duplex Ethernet Media Access Controller IEEE 802.3 compliant 100BASE-TX/100BASE-FX/10BASE-T PCI Bus master scatter/gather DMA on any byte boundary Full operation with PCI Clock from 25 MHz to 33 MHz PCI Revision 2.2 compliant On-chip transmit and receive FIFO buf

IP100ALF Applications

* including workstation NICs, PC motherboards, and other systems utilizing a PCI bus that require network connectivity to an Ethernet or Fast Ethernet LAN. The IP100A LF includes a PCI bus interface unit, IEEE 802.3 compliant MAC, transmit and receive FIFO buffers, IEEE 802.3 compliant 100BASE-TX, 10B

📥 Download Datasheet

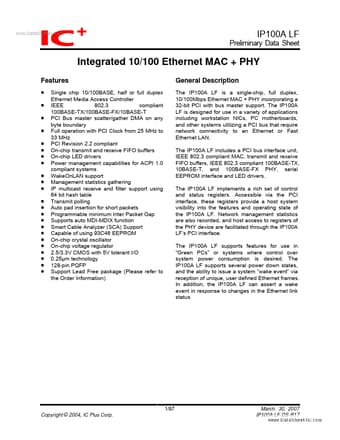

Preview of IP100ALF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IP100ALF
Manufacturer
IC Plus
File Size
2.01 MB
Datasheet
IP100ALF_ICPlus.pdf
Description
Integrated 10/100 Ethernet MAC PHY
