IC62LV25616LL 256Kx16 bit Low Voltage and Ultra Low Power CMOS Static RAM

The ICSI IC62LV25616L and IC62LV25616LL are low-power, 4.194,304 bit static RAMs organized as 262,144 words by 16 bits. They are fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low p.

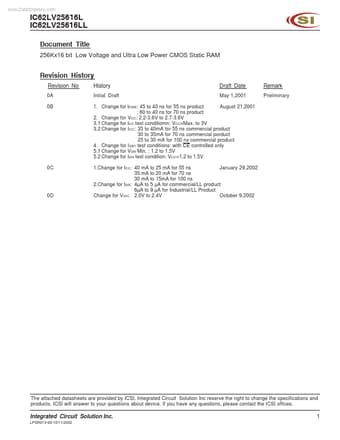

www.DataSheet4U.com IC62LV25616L IC62LV25616LL Document Title 256Kx16 bit Low Voltage and Ultra Low Power CMOS Static RAM Revision History Revision No 0A 0B History Initial Draft Draft Date May 1,2001 Remark Preliminary 1. Change for tPWE: 45 to 40 ns for 55 ns product August 21,2001 : 60 to 40 ns for 70 ns product 2. Change for VCC: 2.2-3.6V to 2.7-3.6V 3.1 Change for ICC test conditiomn: VCC=Max. to 3V 3.2 Change for ICC: 35 to 40mA for 55 ns commercial product 30 to 35mA for 70 ns comme.

IC62LV25616LL Features

* High-speed access times: 55, 70, 100 ns

* CMOS low power operation

* 60 mW (typical) operating

* 3 µW (typical) CMOS standby

* TTL compatible interface levels

* Single 2.7V-3.6V Vcc power supply

* Fully static operation: no clock or refresh r

IC62LV25616L_ICSI.pdf

IC62LV25616LL Datasheet Preview — This datasheet PDF includes multiple part numbers: IC62LV25616LL, IC62LV25616L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IC62LV25616LL, IC62LV25616L

Manufacturer:

ICSI

File Size:

151.28 KB

Description:

256kx16 bit low voltage and ultra low power cmos static ram.

Note:

This datasheet PDF includes multiple part numbers: IC62LV25616LL, IC62LV25616L.
Please refer to the document for exact specifications by model.
