IC62LV2568L Datasheet - ICSI

IC62LV2568L 256K x 8 LOW POWER AND LOW Vcc CMOS STATIC RAM

The 1+51 IC62LV2568L and IC62LV2568LL are low power and low VCC, 262,144-bit words by 8 bits CMOS static RAMs. They are fabricated using 1+51's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power co.
www.DataSheet4U.com IC62LV2568L IC62LV2568LL IC62LV2568L IC62LV2568LL 256K x 8 LOW POWER and LOW V++ CMOS STATIC RAM .EATURES • Access times of 55, 70, 100 ns • Low active power: 126 mW (max, L, LL) • Low standby power: 36 µW (max, L) and 7.2 µW (max, LL) CMOS standby • Low data retention voltage: 1.5V (min.) • Available in Low Power (-L) and Ultra-Low Power (-LL) • Output Enable (OE) and two Chip Enable • TTL compatible inputs and outputs • Single 2.7V-3.6V power supply • Available in the 32-.

IC62LV2568L_ICSI.pdf

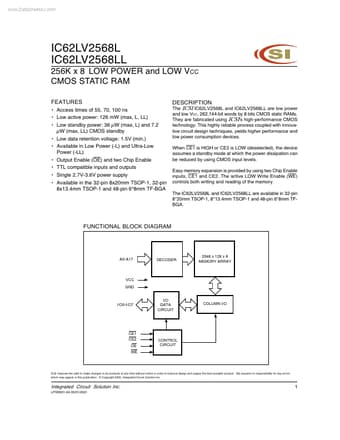

Preview of IC62LV2568L PDF
IC62LV2568L Datasheet Preview Page 2 IC62LV2568L Datasheet Preview Page 3

Datasheet Details

Part number:

IC62LV2568L

Manufacturer:

ICSI

File Size:

158.53 KB

Description:

256k x 8 low power and low vcc cmos static ram.
